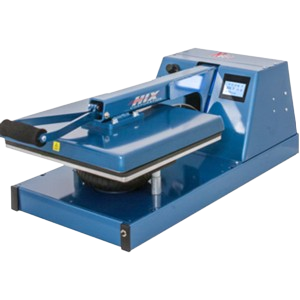

N-680 Clamshell Press

HIX N-680 air-operated automatic heat presses can be described with three phrases: easy to use, highly efficient productivity, and rugged dependability. You’ll notice your operators will have less fatigue and an increased performance rate.

When the upper platen is lowered by hand, it will trip a micro switch just before closure and the machine will take over applying your preset pressure. At the end of the preset time, the machine will open automatically for you. This press helps reduce operator fatigue in long production runs.

It is built with a long-lasting pneumatic air cylinder lift system, a larger air valve for faster clamping, and bushings in key areas for durability. This all makes this machine more suitable for extra high volume work.

The HIX N-680 is also very useful in heavy traffic tourist retail shops where numerous garment types, such as sweats and T-shirts, are continuously being produced. Because it is air-operated, you can set the amount of pressure on the machine and it will adjust automatically to the product, no matter the thickness of the garment.

The N-680 features a touch-screen controller with a built-in digital timer that is adjustable up to 99 minutes, 59 seconds. It also shows the time countdown on readout, beeps after elapsed time, and resets when the handle is raised. The calibrated digital temperature control is adjustable up to 450°F (232°C) and displays the current temperature. You can easily set the air pressure with the knob and see the PSI reading on the gauge. With the pre-press release, you can start pressing your garment to remove any wrinkles and push the button to open the machine, without having to wait for the end of the cycle for the press to open.

The N-680 is a commercial grade air-operated machine with a 15″ x 15″ (surface area) heat platen. It is built with a long-lasting pneumatic air cylinder lift system, a stronger air valve for faster clamping, and bushings at hinge points for maximum durability. This all makes this machine more suitable for extra high volume work.

If you have hundreds of items to heat press in one day (a common event in the business), your arms, shoulders, and back will thank you! (This makes the press terrific for those with less than 100% use of their arms and shoulders.)

-100% Made in the USA – HIX has its own 110,000 sqft manufacturing facility with its very own fully integrated aluminum foundry, CNC mill operation, welding, metal forming, wiring, fabrication, assembly, and packaging departments.

-A one-year general warranty and lifetime warranty on the heater element.

Dimensions: W 21″ x H 15″ x D 41″
Heat Platen Size: 15″ x 15″ (38 x 38 cm)
Weight Shipping: 102 lbs. (46 kg)
