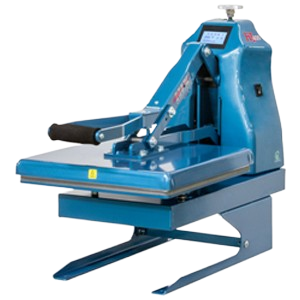

HT-400 Clamshell Press

HT 400

The graphics industry calls this machine “The Workhorse” for good reason – the HIX HT-400 Clamshell Press is rugged, durable, and made to perform. A must-have for any serious start-up business, the HIX HT-400 has earned respect for its numerous capabilities and reliability. With over 100,000 units sold throughout the world, this machine is regarded as an industry standard. Many customers have used this heat press for over 30 years of worry-free service. If you’re looking for high production capabilities, this is the heat press you need!

The secret to our success is in the casting. Every heat casting at HIX is manufactured in a permanent steel cavity mold using a HIX-exclusive aluminum alloy for maximum heat transfer. The HT-400 has a 15″ x 15″ heat platen that can apply all types of transfers on items up to 1″ thick. The floating lower platen helps provide even pressure on thicker items, no matter where it’s applied. HIX presses provide completely even pressure from edge to edge, even at high temps.

The HT-400 features a touch-screen controller that is adjustable up to 999 seconds, shows time countdown on readout, beeps after elapsed time, and resets when the handle is raised. The calibrated digital temperature control is adjustable up to 450°F (232°C) and displays the current temperature.

The easy-to-use open-and-close handle has spring assist and a full range pressure adjustment, provides even pressure on thicker items, and adds 20% more pressure over straight handle designs.

The HT-400 now comes with a free Splitter Stand (as pictured above), allowing for the operators to “dress” the shirt easily over the lower platen, keeping the back of the shirt positioned underneath the machine and away from the heat and compression.

This is handy when trying to avoid double-compression and heating of a previously applied transfer on the same shirt. In case of sublimation ink, it will also avoid all ink migration to the back side of the shirt.

-100% Made in the USA – HIX has its own 110,000 sqft manufacturing facility with its very own fully integrated aluminum foundry, CNC mill operation, welding, metal forming, wiring, fabrication, assembly, and packaging departments. -A one-year general warranty and lifetime warranty on the heater element.

Dimensions: W 21″ x H 23″ x D 33″
Heat Platen Size: 15″ x 15″ (38 x 38 cm)
Weight Shipping: 84 lbs. (39 kg)
